Titanic wreck bow

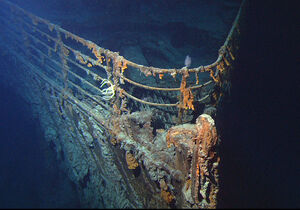

The bow of the wrecked RMS Titanic, photographed in June 2004

The wreck of the RMS Titanic is located about 370 miles (600 km) south-southeast of the coast of Newfoundland, lying at a depth of about 12,500 feet (3,810 m). Over the years since the sinking of the Titanic on 14/15 April 1912, many impractical, expensive and often physically impossible schemes have been put forward to raise the wreck from its resting place. They have included ideas such as filling the wreck with ping-pong balls, injecting it with 180,000 tons of Vaseline, or using half a million tons of liquid nitrogen to turn it into a giant iceberg that would float back to the surface.

Until 1 September 1985 the location of the wreck was unknown. Various expeditions tried using sonar to map the sea bed in the hope of spotting the wreck, but failed due to a combination of bad weather, technological difficulties and poor search strategy. The wreck was finally located, 13.2 miles (21 km) from the inaccurate position transmitted by Titanics crew while the ship was sinking, by a joint French-American expedition led by Jean-Louis Michel of IFREMER and Robert Ballard of the Woods Hole Oceanographic Institution. The key to its discovery was an innovative remotely-controlled deep-sea vehicle called Argo, which could be towed above the sea bed while its cameras transmitted pictures back to a mother ship.

The wreck lies in two pieces about a third of a mile (0.6 km) apart. The bow is still largely recognisable, though it is heavily damaged, and has been found to contain some surprisingly well-preserved interiors as well as many artifacts. The stern suffered catastrophic damage resulting from the stresses incurred by the sinking and its impact on the sea bed, and is now little more than a pile of twisted metal. A substantial section of the middle of the ship disintegrated and is scattered across the sea bed. A debris field covering about 5 by 3 miles (8 × 5 km) around the wreck contains hundreds of thousands of items spilled from Titanic as she sank, ranging from passengers' personal effects to machinery, furniture, utensils and coal. The bodies of passengers and crew once also lay in the debris field, but have been entirely consumed by sea creatures, leaving only their shoes lying together in the mud.

Titanics wreck has been the focus of intense interest since its discovery and has been visited by numerous expeditions, including salvagers who have controversially recovered thousands of items to be conserved and put on public display. The wreck itself is far too fragile to be raised as it has severely deteriorated in the century that it has spent on the sea bed, with the deterioration accelerating since its rediscovery. It has been colonised by a wide variety of animals–including organisms new to science–and by great quantities of iron-eating bacteria, which have created "rusticles" covering the hull. The bacteria are gradually eating away the hull and will eventually reduce Titanic to a patch of rust on the sea bed, with the remaining scraps intermingled with her more durable fittings.

Salvaging Titanic Edit

Soon after Titanic sank on 15 April 1912, proposals were advanced to salvage her from her resting place in the North Atlantic Ocean, despite that its exact location – not to mention its condition – was unknown. The families of several wealthy victims of the disaster – the Guggenheims, Astors, and Wideners – formed a consortium and contracted with the Merritt and Chapman Derrick and Wrecking Company to raise Titanic.[1] The project was soon abandoned as impractical, as divers could not reach even a fraction of the necessary depth, where the pressure is over 6,000 pounds per square inch (410 bar). The company considered dropping dynamite on the wreck to dislodge bodies which would float to the surface, but finally gave up after oceanographers suggested that the extreme pressure would have compressed the bodies into gelatinous lumps.[2] In fact, this was incorrect. Whale falls, a phenomenon not discovered until 1987 – coincidentally, by the same submersible used for the first manned expedition to Titanic the year before[3] – demonstrate that water-filled corpses, in this case cetaceans, can sink to the bottom essentially intact.[4] The high pressure and cold temperature of the water would have prevented significant quantities of gases forming during decomposition, stopping the bodies from rising back to the surface.[5]

In the subsequent years, various proposals were put forward to salvage Titanic but all fell foul of practical and technological difficulties, a lack of funding and in many cases a lack of understanding of the physical conditions at the wreck site. Charles Smith, an architect from Denver, proposed in March 1914 to attach electromagnets to a submarine which would be irresistibly drawn to the wreck's steel hull. Having found its exact position, more electromagnets would be sent down from a fleet of barges which would winch Titanic to the surface.[6] An estimated cost of $1.5 million (£

  • 1 today) – not to mention the complete impracticality of such a scheme – put paid to that idea. A somewhat similar proposal was put forward calling for Titanic to be raised by means of attaching balloons to her hull using electromagnets. Once enough balloons had been attached, the ship would float gently to the surface. Again, the idea got no further than the drawing board.[7]

The first serious attempt to salvage Titanic took place in July 1953 when Risdon Beazley Ltd, a Southampton-based salvage company, chartered the Admiralty Coastal Salvage vessel Help to carry out a secret expedition in the area where Titanic went down. The ship was reported to have carried out underwater blasting, dropping explosives overboard to detonate on the sea bed. It was equipped with deep-sea cameras and remote-controlled machinery for retrieving submerged objects. The expedition's objectives were not publicly disclosed, but it seems to have been intended to blow open the hull of Titanic and retrieve objects from the interior. However, Risdon Beazley failed to find the ship either in 1953 or in a second attempt in 1954.[8]

Salvage proposals in the 1960s and 1970s Edit

Raise The Titanic Movie Poster

Titanic returning to the surface in the film Raise the Titanic; the scene depicted was physically impossible.

A hosiery worker from Baldock named Douglas Woolley came up with another idea in the mid-1960s: to find Titanic using a bathyscaphe (like Trieste, used to reach the bottom of the Mariana Trench in 1960) and raise the wreck by inflating nylon balloons that would be attached to her hull.[9] The declared objective was to "bring the wreck into Liverpool and convert it to a floating museum."[10] The Titanic Salvage Company was established to manage the scheme and a group of businessmen from West Berlin set up an entity called Titanic-Tresor to support it financially.[9] It fell apart when its proponents found they could not overcome the problem of how the balloons would be inflated in the first place. Calculations showed that it could take ten years to generate enough gas to overcome the water pressure.[11]

A variety of audacious but equally impractical schemes was put forward during the 1970s. One proposal called for 180,000 tons of molten wax (or alternatively, Vaseline) to be pumped into Titanic, lifting her to the surface.[12] Another proposal involved filling Titanic with ping-pong balls, but overlooked the fact that the balls would be crushed flat by the pressure long before reaching Titanics depth.[13] A similar idea involving the use of Benthos glass spheres,[lower-alpha 1] which could survive the pressure, was scuppered when the cost of the number of spheres required was put at over $238 million.[12] An unemployed haulage contractor from Walsall, UK named Arthur Hickey proposed to turn Titanic into an iceberg, freezing the water around the wreck to encase it in a buoyant jacket of ice. This, being lighter than liquid water, would float to the surface and could be towed to shore. The BOC Group calculated that this would require half a million tons of liquid nitrogen to be pumped down to the sea bed.[14] In his 1976 thriller Raise the Titanic!, author Clive Cussler's hero Dirk Pitt repairs the holes in Titanics hull, pumps it full of compressed air and succeeds in making it "leap out of the waves like a modern submarine blowing its ballast tanks", a scene depicted on the posters of the subsequent film of the book. Needless to say, this was not physically possible.[15]

Robert Ballard of the Woods Hole Oceanographic Institution had long been interested in finding Titanic. Although early negotiations with possible backers were abandoned when it emerged that they wanted to turn the ship into paperweights, more sympathetic backers joined Ballard to form a company named Seasonics International Limited as a vehicle for rediscovering and exploring the wreck. In October 1977 he made his first attempt to find the ship with the aid of the Alcoa corporation's deep sea salvage vessel Seaprobe. This was essentially a drillship with sonar equipment and cameras attached to the end of the drilling pipe. It could lift objects from the seabed using a remote-controlled mechanical claw.[16] The expedition ended in failure when the drilling pipe broke, sending 3,000 feet (910 m) of pipe and $600,000 worth of electronics plunging to the sea bed.[16]

In 1978, the Walt Disney Company and National Geographic magazine considered mounting a joint expedition to find Titanic, using the aluminium submersible Aluminaut. Titanic would have been well within the submersible's depth limits, but the plans were abandoned for financial reasons.[9]

The following year, the British billionaire financier and tycoon Sir James Goldsmith set up Seawise & Titanic Salvage Ltd with the involvement of underwater diving and photographic experts. His aim was to use the publicity of finding Titanic to promote his newly established magazine, NOW!. An expedition to the North Atlantic was scheduled for 1980 but was cancelled due to financial difficulties.[9] A year later, NOW! folded after 84 issues with Goldsmith incurring huge financial losses.[17]

Fred Koehler, an electronics repairman from Coral Gables, Florida, sold his electronics shop to finance the completion of a two-man deep-sea submersible called Seacopter. He planned to dive to Titanic, enter the hull and retrieve a fabulous collection of diamonds rumoured to be contained in the purser's safe. However, he was unable to obtain financial backing for his planned expedition.[18] Another proposal involved using a semi-submersible platform mounted with cranes, resting on two watertight supertankers, that would winch the wreck off the seabed and carry it to shore. A proponent was quoted as saying, "It's like the Great Wall of China – given enough time and money and people, you can do anything." Time, money and people were not forthcoming and the proposal got no further than any of its predecessors.[19]

Jack Grimm's expeditions, 1980–83 Edit

On 17 July 1980, an expedition sponsored by Texan oilman Jack Grimm set off from Port Everglades, Florida, in the research vessel H.J.W. Fay. Grimm had previously sponsored expeditions to find Noah's Ark, the Loch Ness Monster, Bigfoot, and the (non-existent) giant hole in the North Pole predicted by the Hollow Earth hypothesis. To raise funds for his Titanic expedition, he obtained sponsorship from friends with whom he played poker, sold media rights through the William Morris Agency, commissioned a book, and obtained the services of Orson Welles to narrate a documentary. He acquired scientific support from Columbia University by donating $330,000 to the Lamont-Doherty Geological Observatory for the purchase of a wide-sweep sonar, in exchange for five years' use of the equipment and the services of technicians to support it. Drs. William B. Ryan of Columbia University and Fred Spiess of Scripps Institution of Oceanography in California joined the expedition as consultants.[20] They nearly stayed ashore when Grimm brought along a monkey called Titan, which was trained to point at a spot on the map to supposedly indicate where Titanic was. The scientists issued an ultimatum: "It's either us or the monkey." Grimm preferred the monkey, but was prevailed upon to leave it behind and bring the scientists instead.[21]

The results were disappointingly inconclusive, as three weeks of surveying in almost continuous bad weather during July and August 1980 failed to find Titanic. The problem was exacerbated by technological limitations; the Sea MARC sonar used by the expedition had a relatively low resolution and was a new and untested piece of equipment. It was nearly lost only 36 hours after it was first deployed when the tail was ripped off during a sharp turn, destroying the magnetometer, which would have been vital for detecting Titanics hull. Nonetheless it managed to survey an area of some 500 square nautical miles and identified 14 possible targets.[21]

Grimm mounted a second expedition in June 1981 aboard the research vessel Gyre. Spiess and Ryan joined him again and this time they used a much more capable device, the Scripps Deep Tow sonar. The weather was again very poor, but all 14 of the targets were successfully covered and found to be natural features. On the last day of the expedition, an object that looked like a propeller was found.[22] Grimm announced on his return to Boston that Titanic had been found, but the scientists declined to endorse his identification.[23]

In July 1983, Grimm went back a third time with Ryan aboard the research vessel Robert D. Conrad to have another look at the "propeller". This time nothing was found and very bad weather brought an early end to the expedition. It later turned out that Sea MARC had actually passed over Titanic but had failed to detect it,[23] while Deep Tow passed within 1.5 of the wreck.[24]

Discovery Edit

Robert Ballard

Dr. Robert D. Ballard, the discoverer in September 1985 of the wreck of Titanic

D. Michael Harris and Jack Grimm's unsuccessful attempts to find Titanic did at least succeed in producing fairly detailed mapping of the area in which the ship had sunk.[23] It was clear that the position given in Titanics distress signals was incorrect; the problem was finding the wreck, a relatively small target in a very large search area. Despite the failure of his 1977 expedition, Robert Ballard had not given up hope, and devised new technologies and a new search strategy to tackle the problem. The new technology was a system called Argo / Jason. This consisted of a remotely controlled deep-sea vehicle called Argo, equipped with sonar and cameras and towed behind a ship, with a robot called Jason tethered to it that could roam the sea floor, take close-up images and gather specimens. The images from the system would be transmitted back to a control room on the towing vessel where they could be assessed immediately. Although it was designed for scientific purposes, it also had important military applications and the United States Navy agreed to sponsor the system's development,[25] with the condition that it was to be used to carry out a number of programmes – many still classified – for the Navy.[26]

The Navy commissioned Ballard and his team to carry out a month long expedition every year for four years, to keep Argo / Jason in good working condition.[27] It agreed to Ballard's proposal to use some of the time to search for Titanic once the Navy's objectives had been met; the search would provide an ideal opportunity to test Argo / Jason. In 1984 the Navy sent Ballard and Argo to map the wrecks of the sunken nuclear submarines USS Thresher and USS Scorpion, lost in the North Atlantic at depths of up to 9,800 feet (2,987 m).[28] The expedition found the submarines and made an important discovery. As Thresher and Scorpion sank, debris spilled out from them across a wide area of the seabed and was sorted by the currents, so that light debris drifted furthest away from the site of the sinking. This "debris field" was far larger than the wrecks themselves. By following the comet-like trail of debris, the main pieces of wreckage could be found.[29]

A second expedition to map the wreck of Scorpion was mounted in 1985. Only twelve days of search time would be left at the end of the expedition to look for Titanic.[28] As Harris/Grimm's unsuccessful efforts had taken more than forty days,[23] Ballard decided that extra help would be needed. He approached the French national oceanographic agency, IFREMER, with which Woods Hole had previously collaborated. The agency had recently developed a high-resolution side-scan sonar called SAR and agreed to send a research vessel, Le Suroit, to survey the sea bed in the area where Titanic was believed to lie. The idea was for the French to use the sonar to find likely targets, and then for the Americans to use Argo to check out the targets and hopefully confirm whether they were in fact the wreck.[30] The French team spent five weeks, from 5 July to 12 August 1985, "mowing the lawn" – sailing back and forth across the 150 square miles (388 km2) target area to scan the sea bed in a series of stripes. However, they found nothing, though it turned out that they had passed within a few hundred yards of Titanic in their first run.[31]

Ballard realised that looking for the wreck itself using sonar was unlikely to be successful and adopted a different tactic, drawing on the experience of the surveys of Thresher and Scorpion; he would look for the debris field rather than the wreck itself,[32] using Argos cameras rather than sonar. Whereas sonar could not distinguish man-made debris on the sea bed from natural objects, cameras could. The debris field would also be a far bigger target, stretching a mile (1.5 km) or longer, whereas Titanic itself was only 90 feet (27 m) wide.[33] The search required round-the-clock towing of Argo back and forth above the sea bed, with shifts of watchers aboard the research vessel Knorr looking at the camera pictures for any sign of debris.[34] After a week of fruitless searching, at 12.48 am on Sunday 1 September 1985 pieces of debris began to appear on Knorrs screens. One of them was identified as a boiler, identical to those shown in pictures from 1911.[35] The following day, the main part of the wreck was found and Argo sent back the first pictures of Titanic since her sinking 73 years before.[36] The discovery made headlines around the world.[37]

Subsequent expeditions Edit

1986–1998 Edit

ALVIN submersible

DSV Alvin, used in 1986 to mount the first manned expedition to the wreck of Titanic

Following his discovery of the wreck site, Ballard returned to Titanic in July 1986 aboard the research vessel RV Atlantis II. Now the deep-diving submersible DSV Alvin could take people back to Titanic for the first time since her sinking, and the remotely operated vehicle (ROV) Jason Jr. would allow the explorers to investigate the interior of the wreck. Another system, ANGUS, was used to carry out photo surveys of the debris field.[38] The results were spectacular. Jason Jr. descended the ruined Grand Staircase as far as B Deck, and photographed remarkably well-preserved interiors, including some chandeliers still hanging from the ceilings.[39]

Between 25 July and 10 September 1987, an expedition mounted by IFREMER and a consortium of American investors which included George Tulloch, G. Michael Harris, D. Michael Harris and Ralph White made 32 dives to Titanic using the submersible Nautile. Controversially, they salvaged and brought ashore more than 1,800 objects.[40] A joint Russian-Canadian-American expedition took place in 1991 using the research vessel Akademik Mstislav Keldysh and its two MIR submersibles. Sponsored by Stephen Low and IMAX, CBS, National Geographic and others, the expedition carried out extensive scientific research with a crew of 130 scientists and engineers. The MIRs carried out 17 dives, spending over 140 hours at the bottom, shooting 40,000 feet (12,000 m) of IMAX film. This was used to create the 1995 documentary film Titanica, which was later released in the US on DVD in a re-edited version narrated by Leonard Nimoy.[41][42]

IFREMER and RMS Titanic Inc., the successors to the sponsors of the 1987 expedition, returned to the wreck with Nautile and the ROV Robin in June 1993. Over the course of fifteen days, Nautile made fifteen dives lasting between eight and twelve hours.[43] Another 800 artifacts were recovered during the expedition including a two-tonne piece of a reciprocating engine, a lifeboat davit and the steam whistle from the ship's forward funnel.[44]

In 1993, 1994, 1996, 1998 and 2000, RMS Titanic Inc. and Expedition Leader G. Michael Harris {{www.sptimes.com/News/071600/TampaBay/Return_to Titanic.shtml}} carried out an intensive series of dives that led to the recovery of over 4,000 items in the first two expeditions alone.[45] The 1996 expedition controversially attempted to raise a section of Titanic itself, a section of the outer hull that originally comprised part of the wall of two First Class cabins on C Deck, extending down to D Deck. It weighs 20 tons, measures 15 by 25 feet (4.6 × 7.6 m) and has four portholes in it, three of which still have glass in them.[46] The section had come loose either during the sinking or as a result of the impact with the sea bed.[47] Its recovery using diesel-filled floatation bags was turned into something of an entertainment event with two cruise ships accompanying the expedition to the wreck site. Passengers were offered the chance, at $5,000 per person, to watch the recovery on television screens in their cabins while enjoying luxury accommodation, Las Vegas-style shows and casino gambling aboard the ships. Various celebrities were recruited to liven up the proceedings, including Burt Reynolds, Debbie Reynolds and Buzz Aldrin, and "Grand Receptions" for VIPs were scheduled on-shore where the hull section would be displayed. Unfortunately for all concerned, rough weather caused the ropes supporting the bags to snap when the hull section had been lifted to within only 200 feet (61 m) of the surface. It hurtled 12,000 feet (3,658 m) back down,[48] embedding itself upright on the sea floor. Although the attempt was strongly criticised as a money-making publicity stunt by marine archaeologists, scientists and historians, a second, successful attempt to lift the fragment was carried out in 1998. The "Big Piece" was conserved in a laboratory in Santa Fe for two years before being put on display at the Luxor Las Vegas hotel and casino.[49]

In 1995 Canadian director James Cameron chartered the Akademik Mstislav Keldysh and the MIRs to make 12 dives to Titanic. He used the resulting footage to considerable effect in his blockbuster 1997 film Titanic.[50] The discovery of the wreck in 1985 and a National Geographic documentary of Ballard's 1986 expedition had inspired Cameron to write a synopsis in 1987 of what eventually became the film Titanic: "Do story with bookends of present day scene of wreck using submersibles intercut with memories of a survivor and re-created scenes of the night of the sinking. A crucible of human values under stress."[51]

2000 to present Edit

Captain Smith's bathroom

The partly collapsed bathroom of Captain Edward Smith, with the bathtub now filled with rusticles

The 2000 expedition by RMS Titanic Inc. carried out 28 dives during which over 800 artifacts were recovered by Expedition Leader G. Michael Harris, including the ship's engine telegraphs, perfume vials and watertight door gears.[52] In 2001, an American couple–David Leibowitz and Kimberly Miller[53]–caused controversy when they were married aboard a submersible that had set down on the bow of Titanic, in a deliberate echo of a famous scene from James Cameron's 1997 film. The wedding was essentially a publicity stunt, sponsored by a British company called SubSea Explorer which had offered a free dive to Titanic that Leibowitz had won. He asked whether his fiancée could come too and was told that she could – but only if she agreed to get married during the trip.[54] The same company also brought along Philip Littlejohn, the grandson of one of Titanics surviving crew members, who became the first relative of a Titanic passenger or crew member to visit the wreck.[55] Cameron himself also returned to Titanic in 2001 to carry out filming for Walt Disney Pictures' Ghosts of the Abyss, filmed in 3D.[55]

In 2003 and 2004, the US National Oceanic and Atmospheric Administration carried out two expeditions to Titanic. The first, carried out between 22 June – 2 July 2003, to carry out four dives in two days. Its key aims were to assess the current condition of the wreck site and carry out scientific observations to support ongoing research. The stern section, which had previously received relatively little attention from explorers, was specifically targeted for analysis. The microbial colonies aboard Titanic were also a key focus of investigation.[56] The second expedition, from 27 May – 12 June 2004, saw the return of Robert Ballard to Titanic nearly 20 years after he rediscovered it. The expedition spent 11 days on the wreck, carrying out high-resolution mapping using video and stereoscopic still images.[57]

RMS Titanic Inc. mounted further expeditions to Titanic in 2004[58] and 2010, when the first comprehensive map of the entire debris field was produced. Two autonomous underwater vehicles–torpedo-shaped robots–repeatedly ran backwards and forwards across the 3 by 5 miles (4.8 × 8.0 km) debris field, taking sonar scans and over 130,000 high-resolution images. This enabled a detailed photomosaic of the debris field to be created for the first time, giving scientists a much clearer view of the dynamics of the ship's sinking.[59]

In August of 2005, G. Michael Harris led the Titanic HARRIS Expedition and used the Akademik Mstislav Keldysh and the MIR submersibles for 8 dives on Titanic to research G. Michael Harris' "GROUNDING THEORY" that sunk Titanic as well as his son, Sebastian Harris (age 13) who set the Guinness Book of World Records dive as the Youngest Deepest Diver on Titanic.

Tourist and scientific visits to Titanic are still continuing; by April 2012, 100 years since the disaster and nearly 25 since the discovery of the wreck, around 140 people had visited.[60] On 14 April 2012 (the 100th anniversary of the ship's sinking), the wreck of the Titanic became eligible for protection as a UNESCO World Heritage Site.[61]

Description of the wreck Edit

There are two debris fields in the vicinity of the wreck, each between 2,000–2,600 ft (610–729 m) long, trailing in a south-westerly direction from the bow and stern.[5] They cover an area of about 2 square miles (5.2 km2). Most of the debris is concentrated near the stern section of Titanic.[62] It consists of thousands of objects from the interior of the ship, ranging from tons of coal spilled from ruptured bunkers to suitcases, clothes, corked wine bottles (many still intact despite the pressure), bathtubs, windows, washbasins, jugs, bowls, hand mirrors and numerous other personal effects.[63]

The two main parts of the wreck of Titanic present a striking contrast. It had been supposed, following the sinking, that the ship had sunk intact. Although fourteen survivors testified that the ship had broken apart as she sank, this was discounted by the official inquiries into the disaster.[64] It is now clear that the stresses on Titanic caused the ship to split apart between the third and fourth funnels at or just under the surface.[65] The 2010 expedition now determined that the ship split in front of the third funnel.

Bow section Edit

The bow section, which measures about 470 feet (140 m) long, is thought to have descended at an angle of about 45°. Its distance from the stern was caused by its planing forward horizontally by about 1 foot (0.30 m) for every 6 feet (1.8 m) of its descent.[66] During the descent to the sea bed, the funnels were swept away, taking with them the rigging and large lengths of cables. These dragged along the boat deck, tearing away many of the davits and much of the other deck equipment.[67] The foremast was also torn down, falling onto the port bridge area. The ship's wheelhouse was swept away, possibly after being hit by the falling foremast.[65]

The bow hit the bottom at a speed of about 20 knots (23 mph; 37 km/h), digging about 60 feet (18 m) deep into the mud, up to the base of the anchors. The impact bent the hull in two places and caused it to buckle downwards by about 10° under the forward well deck cranes and by about 4° under the forward expansion joint. When the bow section hit the sea bed, the weakened decks at the rear, where the ship had broken apart, collapsed on top of each other.[66] The forward hatch cover was also blown off and landed a couple hundred feet in front of the bow, possibly due to the force of water being pushed out as the bow impacted the bottom.[68]

The area around the bridge is particularly badly damaged; as Robert Ballard has put it, it looks "as if it had been squashed by a giant's fist".[69] Charles R. Pellegrino has proposed that this was the result of a "down-blast" of water, caused by a slipstream that had followed the bow section as it fell towards the sea bed. According to Pellegrino's hypothesis, when the bow came to an abrupt halt the inertia of the slipstream caused a rapidly moving column of water weighing thousands of tons to strike the top of the wreck, striking it near the bridge. The roof of the officers' quarters and the sides of the gymnasium were pushed in, railings were blown outwards and vertical steel columns supporting the decks were bent into a C-shape. Large parts of the bow's interior were demolished by surges of water and violent eddies kicked up by the wreck's sudden halt.[70] Unlike earlier assumptions about damage to the starboard side of the hull, which shows big tears, the actual damage made by the iceberg is not visible at the bow due to mud.

Debris Field Edit

As Titanic broke apart, many objects and pieces of hull were scattered across the sea bed.[71] Pieces of the ship such as the black band and whistle of the second funnel, the base of the third funnel, the air and light shaft structure for the ship's reciprocating engine room, the "lightning rod" from the forward mast, now laying on top of a hull fragment, electric cranes, boilers, lifeboat davits, a piece of the aft staircase's glass dome, a hull fragment bent at 90 degrees, pipes, parts from the engine room, a section of hull with three water heaters and sections of double bottom hull are located within a 3x5 mile area surrounding the wreck, most of them clustered around the stern section.[72]

Stern section Edit

The stern section, which measures about 350 feet (110 m) long, suffered catastrophic damage during the descent and in landing on the sea bed. It had not fully filled with water when it sank and the increasing water pressure caused trapped air pockets to implode, tearing apart the hull. Data from a sonar map made during a 2010 expedition showed that the stern section rotated like a helicopter blade as it sank.[73] The rudder appears to have swung over to an angle of about 30°–45° during the stern's descent, causing the section to follow a tight spiral to the bottom.[74] It probably struck stern-first, burying most of the rudder in the mud up to a depth of 50 feet (15 m).[75] The decks pancaked on top of each other and the hull plating splayed out to the sides of the shattered section.[65] The pancaking is so severe that the combined height of the decks, which are piled up on top of the reciprocating engines, is now generally not more than about 12 to 15 feet (3.7 to 4.6 m) high. No individual deck is more than about 1 foot (30 cm) high.[75]

Large sections of the hull plating seem to have fallen off well before the wreck hit the bottom.[76] One such section, thought to have been from the galleys, separated from the stern in one piece and landed nearby.[67] The force of the water tore up the poop deck and folded it back on itself. The centre propeller is totally buried, while the force of the impact caused the two wing propellers and shafts to be bent upwards by an angle of about 20°.[76]

A large V-shaped section of the ship just aft of midships, running from the keel upwards through Number 1 Boiler Room and upwards to cover the area under the third and fourth funnels, was believed to have disintegrated entirely when the ship broke up. But during the 2010 expedition to map the wreck site, a major chunk of the deckhouse (the base of the third funnel) along with pieces of the third funnel was found. This showed that instead of disingerating, sections of the ship broke off.[77] This was one of the weakest parts of the ship as a result of the presence of two large open spaces – the forward end of the engine room and the aft First Class passenger staircase. The rest of this part of the ship are scattered across the seabed at distances of 130 to 260 feet (40 to 79 m) from the main part of the stern.[78] Five of the boilers from Number 1 Boiler Room came loose during its disintegration and landed in the debris field around the stern. Experts believe that the tight cluster of the boilers is the hypocenter (ground zero) of where the ship broke up above.[79] The rest of the boilers are still presumably located in the bow section.[80]

Condition and deterioration of the wreck Edit

Rattail

A rattail or grenadier fish, typical of the deep-sea fauna around Titanic

Prior to the discovery of Titanics wreck, in addition to the common assumption that she had sunk in one piece, it had been widely believed that conditions at 12,000 feet down would preserve the ship virtually intact. The water is bitterly cold at only about

  1. REDIRECT Template:Convert/Dual/LoffAoffDxSoffT, there is no light and the high pressure was thought to be likely to lower oxygen and salinity levels to the point that organisms would not be able to gain a foothold on the wreck. Titanic would effectively be in a deep freeze.[81] The reality has turned out to be very different, and the ship has deteriorated greatly since she sank in April 1912. Her gradual decay is due to a number of different processes – physical, chemical and biological.[82] She is situated on an undulating, gently sloping area of seabed in a small canyon swept by the Western Boundary Current. Eddies from the current wash constantly across the wreck, scouring the sea bed and keeping sediment from building up over the wreck.[83] The current is strong and often changeable, gradually opening up holes in the ship's hull.[84] Salt corrosion eats away at her hull[82] and it is also affected by galvanic corrosion.[84]

The most dramatic deterioration has been caused by biological factors. It used to be thought that the depths of the ocean were a lifeless desert, but research carried out since the mid-1980s has found that the ocean floor is teeming with life and may rival the tropical rainforests for biodiversity.[85] During the 1991 IMAX expedition, scientists were surprised by the variety of organisms that they found in and around Titanic. A total of 28 species were observed, including anemones, crabs, shrimp, starfish and rattail fish up to a yard (1 m) long.[83] Much larger creatures have been glimpsed by explorers.[86] Some of Titanics fauna has never been seen anywhere else; James Cameron's 2001 expedition discovered a previously unknown type of sea cucumber, lavender with a glowing row of phosphorescent "portholes" along its side.[87] A newly discovered species of bacterium found on the ship has been named Halomonas titanicae.[88] The Canadian geophysicist Steve Blasco has commented that the wreck "has become an oasis, a thriving ecosystem sitting in a vast desert."[83]

The soft organic material aboard and dispersed onto the seabed around the hull would have been the first to disappear, rapidly devoured by fish and crustaceans. Wood-boring molluscs such as Teredo colonised the ship's decks and interior in huge numbers, eating away the wooden decking and other wooden objects such as furniture, panelling, doors and staircase banisters. When their food ran out they died, leaving behind calcareous tubes.[5] The question of the victims' bodies is one that has often troubled explorers of the wreck site. When the debris field was surveyed in Robert Ballard's 1986 expedition, pairs of shoes were observed lying next to each other on the sea bed.[89] The flesh, bones, and clothes had long since been consumed but the tannin in the shoes' leather had apparently resisted the bacteria, leaving the shoes as the only markers of where a body had once lain.[5] Ballard has suggested that skeletons may remain deep within Titanics hull, such as in the engine rooms or third-class cabins. This has been disputed by scientists, who have estimated that the bodies would have completely disappeared by the early 1940s at the latest.[90] However, on April 16, 2012, a day after the 100th anniversary of the sinking, photos were released by the U.S. Government showing possible human remains resting on the ocean floor. The photos were taken by Ballard during an expedition led by NOAA in 2004. The photos show a boot and a coat which experts called "compelling evidence" that its the spot where somebody came to rest and that human remains could be buried in the sediment beneath them.[91]

In any event, the molluscs and scavengers did not consume everything organic. Some of the wooden objects on the ship and in the debris field have not been consumed, particularly those made of teak, a dense wood that seems to have resisted the borers.[92] The First Class reception area off the ships Grand Staircase is still remarkably intact and furniture is still visible among the debris on the floor.[93] Although most of the corridors have lost their walls, furniture is still in place in many cabins; in one, a mattress is still on the bed, with an intact and undamaged dresser behind it.[94] Some have suggested that areas within the ship or buried under debris, where scavengers may not have been able to reach, may still contain human remains. According to Charles Pellegrino, who dived on Titanic in 2001, a finger bone encircled by the partial remains of a wedding ring was found concreted to the bottom of a soup tureen that was retrieved from the debris field.[95] It was returned to the sea bed on the next dive.[96]

Detached rusticles hires

Part of the Titanic wreck in 2003 with rusticles hanging from the hull

The longest-lasting inhabitants of Titanic are likely to be bacteria and archaea which have colonised the metal hull of the ship. They have produced "reddish-brown stalactites of rust [hanging] down as much as several feet, looking like long needle-like icicles", as Robert Ballard has put it. The formations, which Ballard dubbed "rusticles", are extremely fragile and disintegrate in a cloud of particles if touched.[97] The bacteria consume the iron in the hull, oxidising it and leaving rust particles behind as a waste product. To protect themselves from the seawater, they secrete an acidic viscous slime that flows where gravity takes it, carrying ferric oxides and hydroxides. These form the rusticles.[92] When scientists were able to retrieve a rusticle, it was discovered that it was far more complex than had been imagined, with complex systems of roots infiltrating the metal, interior channels, bundles of fibres, pores and other structures. Charles Pellegrino comments that they seem more akin to "levels of tissue organisation found in sponges or mosses and other members of the animal or plant kingdoms."[98] The bacteria are estimated to be consuming Titanics hull at the rate of 400 pounds (180 kg) per day. Roy Collimore, a microbiologist, estimates that the bow alone now supports some 650 tons of rusticles[84] and that they will have devoured fifty per cent of the hull within 200 years.[82]

Since Titanic's wreck was discovered in 1985, radical changes have been observed in the marine ecosystem around the ship. The 1996 expedition recorded 75 per cent more brittle stars and sea cucumbers than Ballard's 1985 expedition, while crinoids and sea squirts had taken root all over the sea bed. Red krill had appeared and an unknown organism had built numerous nests across the seabed from black pebbles. The amount of rusticles on the ship had increased greatly. Curiously, the same thing had happened over about the same timescale to the wreck of the German battleship Bismarck, sunk at a depth of 4,791 metres (15,719 ft) on the other side of the Atlantic. The mud around the ship was found to contain hundreds of different species of animals. The cause of the sudden explosion in life around Titanic appears to result from something causing an increasing amount of nutrients falling from the surface; one possibility is that it is a result of human overfishing eliminating fish that would otherwise have consumed the nutrients.[99]

Many scientists, including Robert Ballard, are concerned that visits by tourists in submersibles and the recovery of artifacts are hastening the decay of the wreck. Underwater microbes have been eating away at Titanics steel since the ship sank, but because of the extra damage caused by visitors, the National Oceanic and Atmospheric Administration estimates that "the hull and structure of the ship may collapse to the ocean floor within the next 50 years."[100] The promenade deck has deteriorated significantly in recent years, partly because of damage caused by submersibles landing on the ship. The mast has almost completely deteriorated and has been stripped of its bell and brass light. Other damage includes a gash on the bow section where block letters once spelled Titanic, part of the brass telemotor which once held the ship's wooden wheel is now twisted and the crow's nest has completely deteriorated.[101] The Canadian director James Cameron may have been responsible for some of the more significant damage during his expedition to the ship in mid-1995 to acquire footage for his 1997 film Titanic. One of the MIR submersibles used on the expedition collided with the hull, damaging both and leaving fragments of the submersible's propeller shroud scattered around the superstructure. Captain Smith's quarters were heavily damaged with the collapsing of its external bulkhead, exposing the interior.[102]

Ownership Edit

Titanics discovery in 1985 sparked a debate over the ownership of the wreck and the valuable items inside and on the sea bed around it. Ballard has argued strongly "that it be left unmolested by treasure seekers".[103] As Ballard has put it, the development of deep-sea submersibles has made "the great pyramids of the deep .... accessible to man. He can either plunder them like the grave robbers of Egypt or protect them for the countless generations which will follow ours."[104] However, within only two weeks of the discovery, a British insurance company claimed that it owned the wreck, and several more schemes to raise it were announced. A Belgian entrepreneur offered trips to Titanic for $25,000 a head.[19]

Spurred by Ballard's appeals for the wreck to be left alone, North Carolina Congressman Walter B. Jones, Jr. introduced the RMS Titanic Maritime Memorial Act in the United States House of Representatives in 1986. It called for strict scientific guidelines to be introduced to govern the exploration and salvage of Titanic and urged the United States Secretary of State to lobby Canada, the United Kingdom and France to pass similar legislation. It passed the House and Senate by an overwhelming majority and was signed into law by President Ronald Reagan on 21 October 1986.[19] However, the law has been ineffective as the wreck lies outside United States waters, and the Act was set aside by the United States District for the Eastern District of Virginia, Norfolk Division, in 1998.[105] Although negotiations between the four countries were carried out between 1997–2000,[106] the resulting "Agreement Concerning the Shipwrecked Vessel R.M.S. Titanic" has been ratified by only the US and the UK.[107]

Litigation and controversy Edit

Return to Titanic Live

Telly Savalas presenting the much-criticised Return to Titanic Live show on 28 October 1987

Only a few days after Ballard's discovery of the wreck, Jack Grimm–the author of the unsuccessful early 1980s attempts to find Titanic–claimed ownership of it on the grounds that he had allegedly been the first to find it.[108] He announced that he intended to begin salvaging the wreck. He said that he "[couldn't] see them just lie there and be absorbed by the ocean floor. What possible harm can [salvage] do to this mass of twisted steel?"[104]

Titanic Ventures Inc., a Connecticut-based consortium, co-sponsored a survey and salvage operation in 1987 with the French oceanographic agency IFREMER.[40] The expedition produced an outcry, not least because of the damage that it caused to the wreck. When the crow's nest bell was pulled from the mast, the crow's nest itself, where the lookouts first saw the iceberg, collapsed. A Titanic survivor, Eva Hart, was outspoken in her condemnation of what many saw as the looting of a mass grave: "To bring up those things from a mass sea grave just to make a few thousand pounds shows a dreadful insensitivity and greed. The grave should be left alone. They're simply going to do it as fortune hunters, vultures, pirates!"[109]

Public misgivings were increased when, on 28 October 1987, a glitzy television program titled Return to the Titanic Live was broadcast from the Cité des Sciences et de l'Industrie in Paris with Telly Savalas hosting.[109] In front of a live TV audience, a valise recovered from the sea bed was opened, revealing a number of personal items apparently belonging to Richard L. Beckwith of New York, who survived the sinking. A safe was also opened, revealing a few items of memorabilia and some soggy banknotes. The tone of the event has been described by one commentator as "unsympathetic, lack[ing] dignity and finesse, and [with] all the superficial qualities of a 'media event'."[40] The TV critic of The New York Times, John Corry, called the event "a combination of the sacred and profane and sometimes the downright silly."[110] Paul Heyer comments that it was "presented as a kind of deep sea striptease" and that Savalas "seemed haggard, missed several cues and at one point almost tripped over a chair". Controversy persisted after the broadcast when claims were made that safe had been opened beforehand and that the show had effectively been a fraud.[111]

In the meantime, Marex-Titanic Inc. was formed in 1992 to launch an expedition to the Titanic. Jack Grimm was invited to participate as an investor and did not form the company nor was he the driving force behind Marex-Titanic. Marex-Titanic was a subsidiary of Marex International and international marine salvage firm located in Memphis, TN. In 1992 Marex made a bid to seize control of the artifacts and the wreck itself by suing Titanic Ventures, arguing that the latter had abandoned its claim by not returning to the wreck since the 1987 expedition. It claimed a superior right of salvage based on a "pill bottle" and hull fragment that were said to have been retrieved by Marex.[112] Marex simultaneously sent a vessel, the Sea Mussel, to carry out its own salvage operation.[113] However, the Marex artifacts were alleged to have been illegally retrieved by the 1991 Russian-American-Canadian expedition[112] and Marex was issued with a temporary injunction preventing it from carrying out its plans. In October 1992 the injunction was made permanent and the salvage claims of Titanic Ventures were upheld.[114] The decision was later reversed by an appeals court but Marex's claims were not renewed.[112] Even so, Titanic Ventures' control of the artifacts recovered in 1987 remained in question until 1993 when a French administrator in the Office of Maritime Affairs of the Ministry of Equipment, Transportation, and Tourism awarded the company title to the artifacts.[115]

In May 1993 Titanic Ventures sold its interests in the salvage operations and artifacts to RMS Titanic Inc., a subsidiary of Premier Exhibitions Inc. headed by George Tulloch and Arnie Geller.[112] It had to go through a laborious legal process of having itself legally recognised as the sole and exclusive salvager of the wreck. Its claim was opposed for a while by the Liverpool and London Steamship Protection and Indemnity Association, Titanics former insurer, but was eventually settled. It was awarded ownership and salvaging rights by the United States District Court for the Eastern District of Virginia on 7 June 1994 in a ruling that declared the company to be the "salvor in possession" of the wreck.[116]

Litigation has continued over the artifacts in recent years. In a motion filed on 12 February 2004, RMS Titanic Inc. requested that the United States district court enter an order awarding it "title to all the artifacts (including portions of the hull) which are the subject of this action pursuant to the Law of Finds" or, in the alternative, a salvage award in the amount of $225 million. RMS Titanic Inc. excluded from its motion any claim for an award of title to the objects recovered in 1987, but it did request that the district court declare that, based on the French administrative action, "the artifacts raised during the 1987 expedition are independently owned by RMST." Following a hearing, the district court entered an order dated 2 July 2004, in which it refused to grant comity and recognise the 1993 decision of the French administrator, and rejected RMS Titanic Inc.'s claim that it should be awarded title to the items recovered since 1993 under the Maritime Law of Finds.[117]

RMS Titanic Inc. appealed to the United States Court of Appeals for the Fourth Circuit. In its decision of 31 January 2006 the court recognised "explicitly the appropriateness of applying maritime salvage law to historic wrecks such as that of Titanic" and denied the application of the Maritime Law of Finds. The court also ruled that the district court lacked jurisdiction over the "1987 artifacts", and therefore vacated that part of the court's 2 July 2004 order. In other words, according to this decision, RMS Titanic Inc. has ownership title to the objects awarded in the French decision (valued $16.5 million earlier) and continues to be salver-in-possession of the Titanic wreck. The Court of Appeals remanded the case to the District Court to determine the salvage award ($225 million requested by RMS Titanic Inc.).[118]

On 24 March 2009, it was revealed that the fate of 5,900 artifacts retrieved from the wreck would rest with a U.S. District Judge's decision.[119] The ruling was later issued in two decisions on 12 August 2010 and 15 August 2011. As announced in 2009, the judge ruled that RMS Titanic Inc. owned the artifacts and her decision dealt with the status of the wreck as well as establishing a monitoring system to check future activity upon the wreck site.[120] On 12 August 2010, Judge Rebecca Beach Smith granted RMS Titanic, Inc. fair market value for the artifacts but deferred ruling on their ownership and the conditions for their preservation, possible disposition and exhibition until a further decision could be reached.[121] On 15 August 2011, Judge Smith granted title to thousands of artifacts from the Titanic that RMS Titanic Inc., did not already own under a French court decision concerning the first group of salvaged artifacts to RMS Titanic Inc., subject to a detailed list of conditions concerning preservation and disposition of the items.[122] The artifacts can be sold only to a company that would abide by the lengthy list of conditions and restrictions.[122] RMS Titanic Inc., can profit from the artifacts through exhibiting them.[122]

RMS Titanic Inc. has also attempted to secure exclusive physical access to the wreck site. In 1996, it obtained a court order finding that it had "the exclusive right to take any and all types of photographic images of the Titanic wreck and wreck site." It obtained another order in 1998 against Deep Ocean Expeditions, a British Virgin Islands corporation that aimed to run tourist trips to Titanic at a cost of $32,000 per person[123] (it now charges $60,000[124]). This was overturned in March 1999 by the United States Court of Appeals for the Fourth Circuit, which ruled that the law of salvage did not extend to obtaining exclusive rights to view, visit and photograph a wreck. The court pointed out that Titanic is "located in a public place" in international waters, rather than in a private or controllable location to which access could be restricted by the owner. Granting such a right would also create a perverse incentive; since the aim of salvage is to carry out a salvage operation, leaving property in place so that it could be photographed would run counter to this objective.[125]

Conservation or protection? Edit

Coal from the Titanic

One of the pieces of coal retrieved from Titanic and controversially sold by RMS Titanic Inc.

RMS Titanic Inc. has attracted considerable controversy for its approach to Titanic. Two rival camps have formed following the wreck's discovery: the "conservationists", championed by RMS Titanic Inc.'s George Tulloch (who died in 2004), and the "protectionists", whose most prominent advocate is Robert Ballard. The first camp has argued that artifacts from around the wreck should be recovered and conserved, while the latter camp argues that the entire wreck site should have been left undisturbed as a mass grave. Both camps agree that the wreck itself should not be salvaged – though RMS Titanic Inc. did not stick to its proclaimed "hands-off" policy when it managed to demolish Titanics crow's nest in the course of retrieving the bell.[45] Its predecessor Titanic Ventures agreed with IFREMER that it would not sell any of the artifacts but would put them on public display, for which it could charge an entry fee.[126]

Tulloch's approach has undoubtedly resulted in outcomes that would otherwise have not been possible. In 1991, he presented Edith Brown Haisman, a 96-year-old survivor of the disaster, with her father's pocket watch which had been retrieved from the sea bed. She had last seen it on 15 April 1912 when he waved goodbye to his wife and daughter as they left aboard lifeboat 14. They never saw him again and he presumably went down with the ship.[127] The watch was loaned to Haisman "for life"; when she died four years later it was reclaimed by RMS Titanic Inc.[128] On another occasion, a steamer trunk spotted in the debris field was found to contain three musical instruments, a deck of playing cards, a diary belonging to one Howard Irwin, and a bundle of letters from his girlfriend Pearl Shuttle.[129] It was first thought that Irwin, a musician and professional gambler, had boarded the ship under a false identity. There was no record of him being among the passengers, even though a ticket had been purchased for him. It turned out that he had stayed ashore but his trunk had been brought aboard the ship by his friend Henry Sutehall, who was among the victims of the disaster.[130] The fragile contents of the trunk were preserved due to the interior being starved of oxygen, which prevented bacteria from consuming the paper. Very few other shipwrecks have yielded readable paper.[131]

On the other hand, the heavily commercialised approach of RMS Titanic Inc. has caused repeated controversy and many have argued that salvaging Titanic is an inherently disrepectful act. The wreck site has been called a "tomb and a reliquary", a "gravestone for the 1,500 people who died" and "hallowed ground".[132] Titanic historians John Eaton and Charles Haas argue that the salvagers are little more than "plunderers and armchair salvage experts" and others have characterised them as "grave robbers".[133] The lurid Return to Titanic... Live! television show in 1987 was widely condemned as a "circus",[134] though the 1987 expedition's scientific and financial leaders had no control over the show.[40] In a particularly controversial episode, RMS Titanic Inc. sold some 80,000 lumps of coal retrieved from the debris field in order to fund the rumoured $17 million cost of lifting the "Big Piece" of the ship's hull.[45] It attempted to get around the no-sale agreement with IFREMER by charging the new owners a $25 "fee" to act as "conservators", in order to claim that the coal lumps had not actually been sold.[134] This attracted strong criticism from all sides.[45] Nonetheless, in 1999 Tulloch was ousted by the company's shareholders and was replaced by Arnie Geller, who promised a more aggressive approach to making a profit. The company declared that it had an "absolute right" to sell recovered gold, coins and currency. It was prevented from doing this by a court order in the United States and IFREMER withdrew its cooperation and its submersibles, threatening a lawsuit.[134]

Exhibitions of Titanic artifacts Edit

Photograph of a brass pocket watch on a stand, with a silver chain curled around the base. The watch's hands read 2:28.

Pocket watch retrieved from an unknown victim of the disaster. It had stopped at 02:28, a few minutes after its owner went into the water.

Objects from Titanic have been exhibited for many years, though only a few were retrieved before the discovery of the wreck in 1985. The Maritime Museum of the Atlantic in Halifax, Nova Scotia has a collection of wooden fragments and an intact deckchair plucked from the sea by the Canadian search vessels that recovered the victims' bodies.[135] Various other museums, including the National Maritime Museum in Greenwich and the Sea City Museum in Southampton, have objects donated by survivors and relatives of victims, including some items that were retrieved from the bodies of victims. More donated Titanic artifacts are to be found in the Merseyside Maritime Museum in Liverpool and the Titanic Historical Society's museum in Indian Orchard, Springfield, Massachusetts.[136] The latter's collection includes items such as the life jacket of Madeleine Astor, the wife of millionaire Titanic victim John Jacob Astor IV, a rivet which was removed from the hull before Titanic went to sea, an ice warning which never reached the bridge, a restaurant menu and a sample square of carpet from a First Class stateroom.[137]

RMS Titanic Inc. organises large-scale exhibitions around the world of artifacts retrieved from the wreck site. After minor exhibitions were held in Paris and Scandinavia, the first major exhibition of recovered artifacts was held at the National Maritime Museum in 1994–95.[138] It was hugely popular, drawing an average of 21,000 visitors a week during the year-long exhibition.[139] Since then, RMS Titanic Inc. has established a large-scale permanent exhibition of Titanic artifacts at the Luxor hotel and casino in Las Vegas, Nevada. The 25,000 square feet (2,300 m2) exhibit is the home of the "Big Piece" of the hull retrieved in 1998 and features conserved items including luggage, Titanics whistles, floor tiles and an unopened bottle of champagne.[140] The exhibit includes a full-scale replica of the ship's Grand Staircase and part of the Promenade Deck, and even a mockup of the iceberg. It also runs a travelling exhibition called Titanic: The Artifact Exhibition which has opened in various cities around the world and has been seen by over 20 million people. The exhibition typically runs for six to nine months featuring a combination of artifacts, reconstructions and displays of the ship, her passengers and crew and the disaster itself. In a similar fashion to the United States Holocaust Memorial Museum in Washington, D.C., visitors are given a "boarding pass" in the name of an individual passenger at the start of the exhibition. They do not discover the fate of "their" passenger until the end.[141]
